Assignment Name:
Installation of full network and server system of Shathe fashion Apparels and Knit Zone Mode

Country:
Bangladesh

Name of Client:
Shathe fashion Apparels

Address:
Knit Zone Mode (Pvt.) Ltd
Domna, Zirani Bazar,
Gazipur – 1344
Bangladesh

Phone: 88-02-7702223, 7702131, 7702181-3 Fax: 88-02-8117447

Start Date (Month/Year):
October 2016

Completion Date (Month/Year):
December 2016

Name of associated Consultants, if any:
Not Applicable

Approx. Value of the Contract:
Subcontract value:
Duration of assignment (months):
3 months

Total No of Staff-months of the assignment:
18

Approx. value of the services provided by under the Contract (in current BDT): -


Value of the contract: -
Sub contract value:
No. of professional Staff-months provided by associated Consultants:
Not Applicable

Name of Senior professional staff of the firm involved and functions performed:


Mutasim Billah, Rashed Mahmud Jewel, Khandakar Mamun.













Narrative Description of Project:
  • Network Switch: Cisco SG300-28-port 10/100/1000 Gigabit
  • Managed Network switch with standard accessories
  • Network Cable: CAT 6 Dlink (Coil)
  • Connector: Cat 6 RJ45 connector Box, PVC Channel setup with Installation
  • Dell Server: Dell power Edge T110 II Tower 4-Core Server-16 GB Hardware RAID Processor: Intel Xeon E3- 1220v2, 3.10 GHz, 8MB Cache, 4 Core, Chipset: Intel C202
  • Memory: 16 GB (2X8GB), 1600 Mhz, Dual Ranked, UDIMMs
  • Hard Drive: 3 X 1 TB 7.2 K RPM SATA
  • RAID: PERC H200 Adapter
  • Optical Drive: 16 x SATA DVD = / - RW Drive
  • Monitor: No Monitor
  • LAN/NIC: Single Port Gigabit Ethernet
  • Power Supply: Single
  • Installation and configuration.
Description of actual services provided by the Staff within the assignment:
  1. System Design: developing programs for expense calculation, budget determination, and cost estimation and attendance management as per client requirements.
  2. Network Design Implementation: network design services for medium to large sized workplaces. Server and database setting up and management integrated with high-speed connectivity are ensured for the clients.
Assignment Name:
Extension Building Design- Well Dresses Ltd.

Country:
Bangladesh

Location within Country:
Chittagong

Name of Client:
Well Dresses Ltd.
Address:
Plot: A49-50, BSCIC Industrial Estate, Kalurghat, and Chittagong, Bangladesh.

Start Date (Month/Year):
February 2017

Completion Date (Month/Year):
July 2017

Name of associated Consultants, if any:

Dr. Md. Jahangir Alam

Approx. Value of the Contract:
Subcontract value:
Duration of assignment (months):
6 Months

Total No of Staff-months of the assignment:


Approx. value of the services provided by under the Contract (in current BDT): Value of the contract:


Sub contract value:


No. of professional Staff-months provided by associated Consultants:
01

Name of Senior professional staff of the firm involved and functions performed:


Arch Redwan Hossain, Engr. Tusher, Engr. Hamidul Ahsan

Narrative Description of Project:
1. Architectural Design
  • Detail architectural plan with elevations and section as per required building occupancy
  • Detail architectural working drawing along with occupancy plan
2. Structural Design
  • Detail analysis of structural part as per Alliance Standard and BNBC 2006
  • Detail working drawing for construction of structural part
3 Foundation Design
  • Foundation design based on the structural analysis and sub-soil condition
  • Detail working drawing for foundation construction
4 Design Report
  • Design report as per Alliance or ACCORD Standard
  • Detail information about material properties for construction
5 Construction Supervision
  • Top supervision as per architectural and structural design
  • Checking material quality during the construction period
Description of actual services provided by the Staff within the assignment:
  1. Architectural Design
  2. Structural Design
  3. Checking and compliance as per BNBC
Assignment Name:
South China Bleaching & Dyeing Factory Limited

Country:
Bangladesh

Location within Country:
DEPZ, Dhaka.

Name of Client:
South China Bleaching & Dyeing Factory Limited.

Address:
Plot: 93-96, 109-L12, DEPZ, Savar, Dhaka, Bangladesh.

Start Date (Month/Year):
December 2017

Completion Date (Month/Year):
On-going

Name of associated Consultants, if any:
Dr.Md.Tareek Uddin

Approx. Value of the Contract:


Subcontract value:


Duration of assignment (months):
6 Months

Total No of Staff-months of the assignment:
36

Approx. value of the services provided by under the Contract (in current BDT):
Value of the contract:

Sub contract value:


No. of professional Staff-months provided by associated Consultants:
02

Name of Senior professional staff of the firm involved and functions performed:


Engr. Touhidul Islam, Engr. Shamim Hossain Patwari, Engr Hasib, Aminul Islam, Engr. Hamidul Ahsan






Narrative Description of Project:


Objective
  • Retrofitting works of South China Bleaching and Dying Factory Buildings is a single storied main shed with mezzanine floor and a single storied boiler shed. Total 32 columns and 31 rafter steel structure will be retrofitted.
  • Supply of MS Plate/T section column, Bracing, end Plate, Connection Plate, stiffener etc (ASTM A570-50, Yield strength 50 Ksi for T section, 36 Ksi for MS Plate).
  • Supply of 19 mm dia (125 mm length). Bolt with Nut. All work will be completed as per design – drawing and specification.
  • Supply of post installed Epoxy adhesive Anchor 12 mm dia, 125 mm length (HIT-HY 200+HIS-N B7 ½ inch HAS-E or Equivalent) and Anchoring Chemical/Epoxy for Nut, Bolt and Shear Stud in superstructure members as per design all complete, delivery at site.
  • Running Welding (6 mm) with existing MS plate for column, bracing, stiffener, base plate, End Plate/Gusset Plate, Connection Plate, etc all works will be completed as per design-drawing and specification.
  • Supervising of all the construction works will be performed as per retrofitting design.
Description of actual services provided by the Staff within the assignment:
  1. Quality Assurance of Retrofitting Work
  2. Supervised the team for quality Retrofitting design.
Assignment Name:
Well Dresses Ltd.

Country:
Bangladesh.

Location within Country:
Chittagong

Name of Client:
Well Dresses Ltd.

Address:
Plot: A49-50, BSCIC Industrial Estate, Kalurghat, and Chittagong, Bangladesh.

Start Date (Month/Year):
November 2016

Completion Date (Month/Year):
On-going

Name of associated Consultants, if any:
Dr. Md. Jahangir Alam














Approx. Value of the Contract:

Subcontract value:

Duration of assignment (months):
1 years

Total No of Staff-months of the assignment:
8 Months

Approx. value of the services provided by under the Contract (in current BDT): Value of the contract:
Sub contract value:
No. of professional Staff-months provided by associated Consultants:
01

Name of Senior professional staff of the firm involved and functions performed:
Engr. Tusher, Md. Eleuse Hossain, Md. Nayem, Md. Parvaze, Md. Sirazul Islam, Engr. Tauhidul Islam



Narrative Description of Project:
Objective
  • Dismantling RCC Grade Slab, CC Slab and Damaged brick works.
  • Earth working of Excavation of all kinds of soil,
  • 75 mm thick CC Casting (1:3:6) by using brick chips as a course aggregates under base or floor in/c the supply of water, electricity and other charges and costs of tools and plants etc., all complete as per Direction of the engineer-in-charge.
  • Supplying, fabrication and fixing to details as per design M.S. deformed bar as reinforcement of required size and length for all types of RCC work in/c straightening the rod, removing rusts, cleaning, cutting, hooking, bending, binding with 22 B.W.G. GI wire, placing the bars in position, in/c lapping, spacing and securing them in position by concrete blocks, metal chairs, etc., complete as per specifications, drawings and direction of the Engineer-in-charge.
Description of actual services provided by the Staff within the assignment:
  1. Architectural Design
  2. Structural Design
  3. Checking and compliance as per BNBC
Assignment Name:
Joint Research on Detail Engineering Assessment of PTI Building, Rangpur
Country:
Bangladesh.
Location within Country:
Rangpur
Name of Client:
LGED
Address:
Plot: LGED Bhaban, LGED Rd, Dhaka 1207, and Bangladesh.
Start Date (Month/Year):
September 2016
Completion Date (Month/Year):
October 2016
Name of associated Consultants, if any:
Approx. Value of the Contract:
Subcontract value:
Duration of assignment (months):
2 years
Total No of Staff-months of the assignment:
36 Months
Approx. value of the services provided by under the Contract (in current BDT): Value of the contract:
Sub contract value:
No. of professional Staff-months provided by associated Consultants:
Name of Senior professional staff of the firm involved and functions performed:
Engr. Khair Mejba, Engr. Hamidul Ahsan, Mizanur Rahman



Narrative Description of Project:
Objective
1) As built drawing:
  • Details structural as built drawing
  • Four (4) side elevation with two (2) sectional view
  • Load management and layout plan (if needed)
2) Testing for material strength
  • Concrete core collection and testing (both destructive and non-destruction) for concrete strength.
  • Foundation exploration and corresponding size investigation at least 3 locations (Corner, Edge, middle)

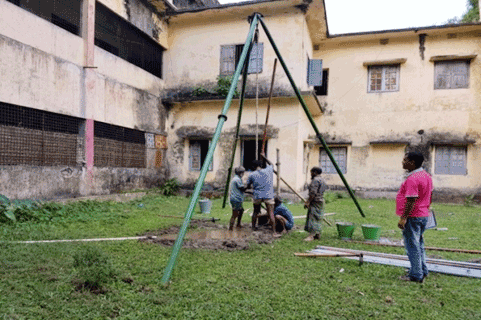

  • Soil investigation report (Bore logged data at least two locations)
  • Collection of existing Rebar and yield strength test
  • Rebar-scanning in columns, beam and slab for detecting existing condition.
  • Investigation of embedded pile length (if needed).
3) Testing of Masonry Building
  • Direct shear test
  • Mortar strength test
  • Brick strength test.
Description of actual services provided by the Staff within the assignment:
Data not received
Data not received
Data not received
